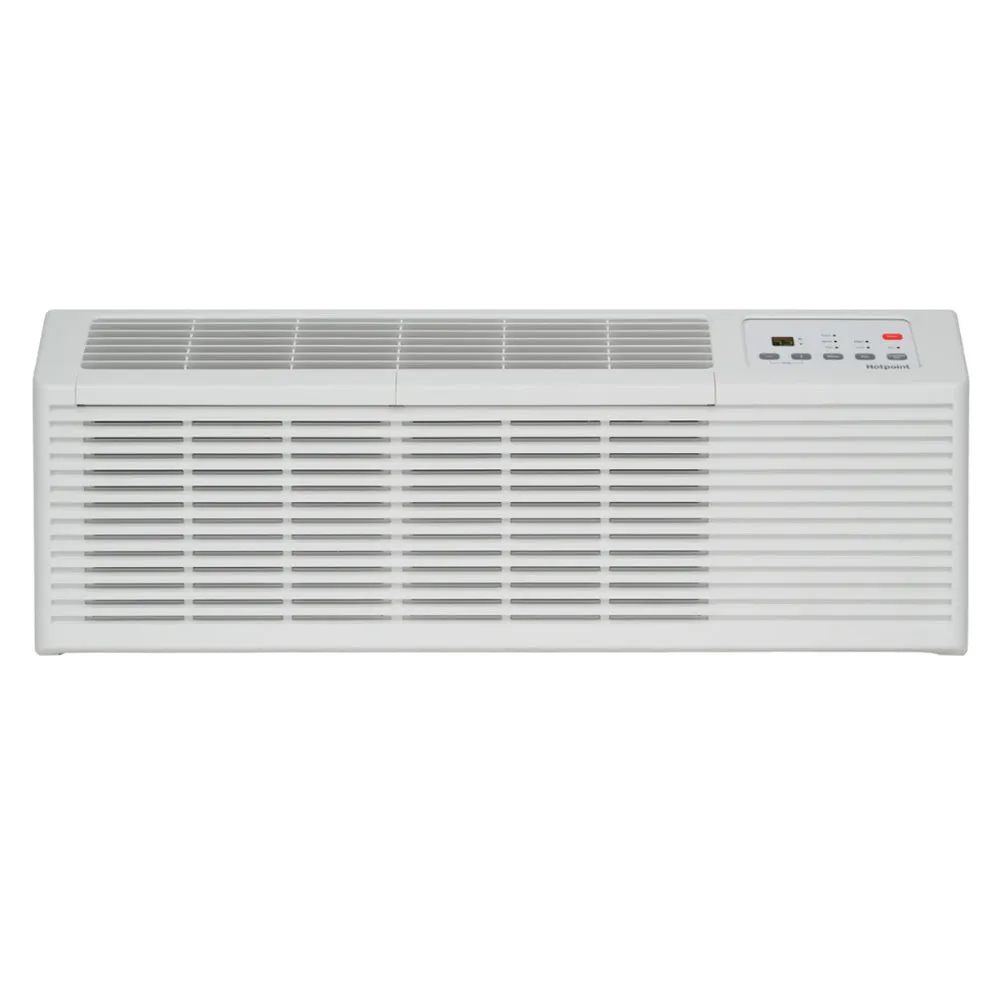

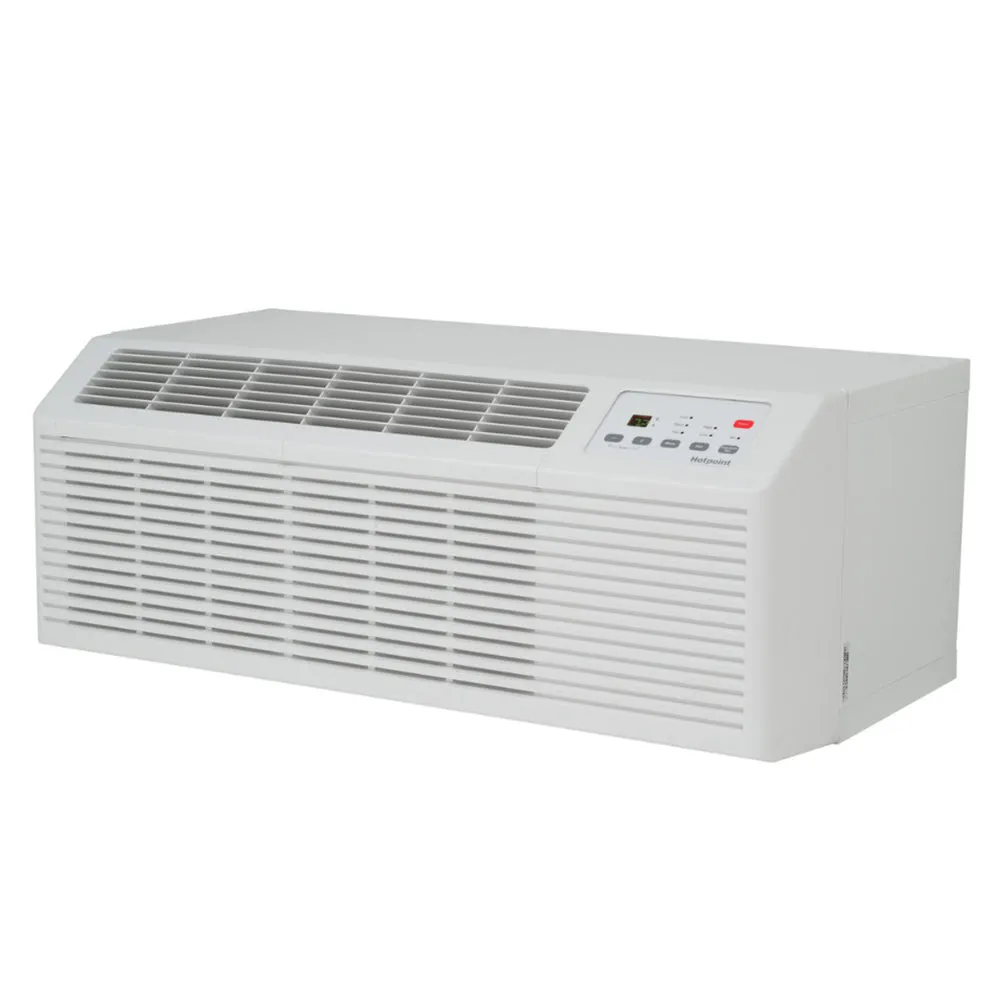

The Hotpoint® AHHS12D3XXA 42" PTAC Unit is a powerful 12,400 BTU cooling and 11,000 BTU heating system designed for through-the-wall installation, making it ideal for hotels, apartments, and commercial spaces. Featuring a heat pump with resistance heat backup, it provides efficient year-round climate control with an energy efficiency ratio (EER) of 10.4 and a coefficient of performance (COP) of 3.1 for heating. It operates on R32 refrigerant, has two fan speeds, and includes SmartFan technology for continuous airflow control. Additional features like auto power recovery, automatic emergency heat, freeze/frost and overheat protection, self-diagnostics, and a constant fan button enhance performance and safety. The electronic control panel is coverless with an auto-dimming display, while the concealed manual vent control allows customizable ventilation. Compatible with remote thermostats (accessory required), it includes an LCDI power cord and a slide-in chassis for easy installation. This white PTAC unit delivers reliable and efficient heating and cooling for a comfortable indoor environment.

Features:

• Cooling Capacity: 12,200 - 12,400 BTU provides efficient temperature regulation for medium to large rooms

• Heating Capacity: 10,800 - 11,000 BTU reverse Cycle Heat Pump with resistance backup for colder conditions

• Energy Efficiency Ratio (EER): 10.4/10.5 BTU/Watt provides energy-efficient cooling performance

• Temperature Range: Adjustable between 62°F - 80°F, providing flexibility for different climate preferences

• Heat Pump with Resistance Backup: Ensures reliable heating even in extremely cold weather

• 2 Fan Speeds: Allows users to choose between low and high speeds for both heating and cooling

• "SmartFan" Technology: Provides continuous fan operation or cycles the fan with the compressor to optimize comfort and efficiency

• Constant Fan Button: Offers continuous air circulation even when cooling or heating is off

• 2-Position Discharge Grille: Enhances airflow direction control for improved room comfort

• 4 Temperature-Limiting Options: Helps control maximum and minimum temperatures, ideal for hotel and commercial use

• Auto-Dimming Display: Reduces brightness for nighttime comfort, preventing disturbances in dark rooms

• Freeze Sentinel™ Protection: Automatically prevents freezing conditions inside the unit during cold weather

• Automatic Indoor Frost Control: Prevents frost buildup on the coils, ensuring optimal performance and energy efficiency

• Auto Power Recovery: Restores previous settings after a power outage, ensuring continued operation without manual input

• Automatic Emergency Heat: Engages automatically when outdoor temperatures are too low for heat pump operation

• Overheat Protection: Prevents excessive temperature buildup, reducing fire hazards

• Slinger Ring Condensate Removal: Eliminates excess moisture efficiently, preventing water buildup and leakage

• Self-Diagnostics System: Monitors system performance and alerts users to potential issues for easy troubleshooting

• Rotary Compressor: Provides quiet, smooth, and energy-efficient operation

• Discharge Grille (2-Position): It enables customizable airflow direction.

• Outdoor Vent / Exhaust: It helps to circulate fresh air into the room.

• Concealed Manual Vent Control: It provides ventilation options while

• Refrigerant Type: R32 (environmentally friendly, lower global warming potential than R410A).

• Voltage: Operates on 230V / 208V, making it compatible with standard electrical systems.

• Cooling Power Consumption: 1,190W / 1,160W for efficient energy use.

• Heating Power Consumption: 1,160W / 1,035W to maintain a comfortable environment with minimal energy waste.

• Dimensions and Weight: The unit has a compact yet sturdy design, measuring 42” in width, 21” in depth, and 16” in height. With a net weight of 95 lbs, it is built for durability while remaining manageable for installation and maintenance.
