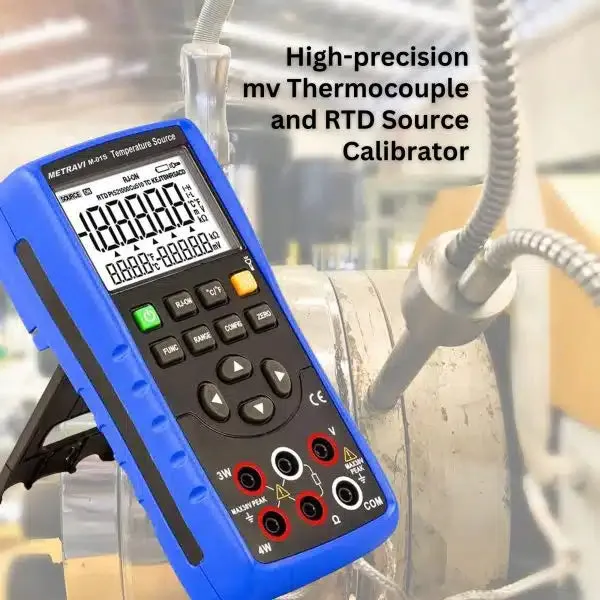

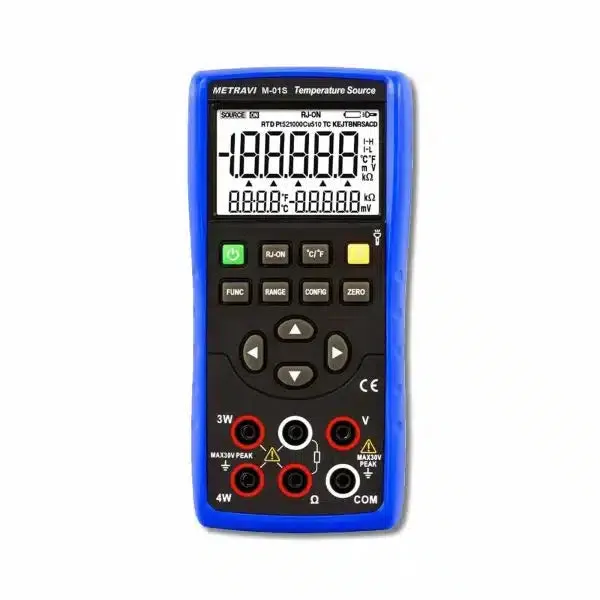

The Metravi M-01S mV Thermocouple and RTD Source Calibrator is a precise and versatile calibration instrument designed for testing and calibrating thermocouples and RTDs in industrial and laboratory settings. It simulates various thermocouple and RTD types, providing accurate mV and resistance outputs to verify and calibrate temperature measurement devices, such as temperature transmitters, indicators, and controllers. Its user-friendly interface and robust design make it ideal for use in industries like manufacturing, power plants, chemical processing, and HVAC.

Key Specifications:

• Model: M-01S
• Brand: Metravi
• Measurement Type: mV, Thermocouple, and RTD Source Calibrator
• Display: High-resolution digital LCD with backlight for easy reading of simulated values.

Calibration Capabilities:

• Thermocouple Simulation:
  • Supported Thermocouple Types: J, K, T, E, R, S, B, N, and more.
  • Output Range: Simulates mV outputs corresponding to specific thermocouple types, making it suitable for testing temperature devices across various ranges.
  • Resolution: 0.01°C/°F or 0.01 mV, ensuring high precision in temperature simulation.
• RTD Simulation:

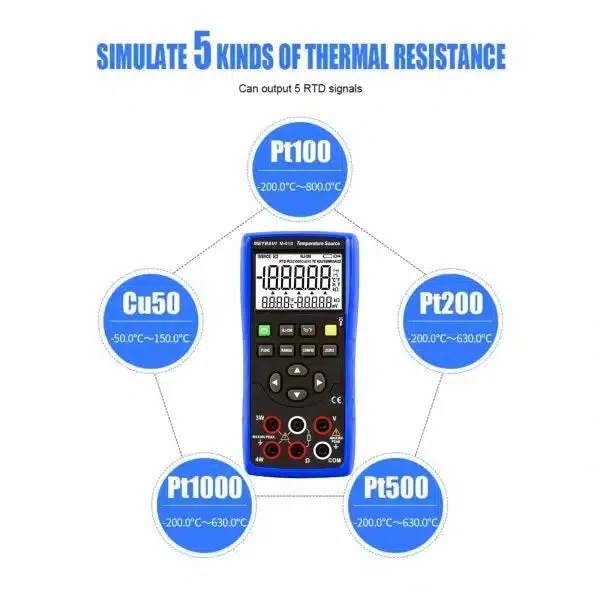

  • Supported RTD Types: PT100, PT500, PT1000, and other standard RTDs.
  • Output Range: Simulates resistance values corresponding to RTD temperature ranges, allowing for accurate testing of RTD-based temperature measurement instruments.
  • Resolution: 0.1°C/°F or 0.1 ohm, offering detailed control over output values.
• mV Output:
  • Range: -10 mV to 100 mV
  • Resolution: 0.01 mV, providing precise low-voltage output for calibration of temperature devices and other instrumentation.

Features:

• Versatile Simulation:
  • Simulates Various Thermocouples and RTDs: Makes it easy to test and calibrate a wide range of temperature measurement devices by providing accurate temperature simulations.
  • Direct mV Output: Useful for testing devices that accept mV inputs directly, such as data loggers and recorders.
• Digital Display:
  • Clear and Backlit LCD: Ensures easy readability of output values in all lighting conditions, making it suitable for fieldwork and in-plant use.
• User-Friendly Interface:
  • Simple Control: Intuitive buttons and settings allow for easy selection of thermocouple or RTD type and output adjustment.
  • Data Hold Function: Allows users to freeze displayed values for easier recording and verification.
• Accuracy:
  • Typically: ±0.05% of reading 1 digit, ensuring precise simulation for highly accurate calibration results.
• Durable and Portable Design:
  • Robust Casing: Built for durability, capable of withstanding the demands of industrial environments.
  • Compact Size: Lightweight and portable, making it convenient for use in both field and laboratory settings.

Power Source:

• Battery Operated: Uses standard batteries, providing portability for on-site calibrations.
• Battery Type: Typically powered by 1 x 9V battery or a rechargeable Li-ion battery, depending on configuration.
• Low Battery Indicator: Alerts users when the battery level is low, ensuring the device is always ready for use during calibration.

Safety and Compliance:

• Safety Rating: Designed for safe use in industrial environments, with proper insulation and safety features to prevent damage or incorrect outputs.
• Certifications: Compliant with relevant standards for calibration instruments, ensuring reliability and accuracy.

Physical and Design:

• Compact and Ergonomic Design: Lightweight and designed for easy handling, suitable for prolonged use during calibration sessions.
• Color: Typically available in a professional-grade finish, such as blue or black.
• Warranty: One year against manufacturing defects, providing assurance of product reliability.

Applications:

The Metravi M-01S mV Thermocouple and RTD Source Calibrator is ideal for a wide range of applications, including:

• Calibration of Temperature Transmitters: Provides accurate temperature simulations for testing and calibrating thermocouple and RTD transmitters in process control.
• Instrument Calibration in Industrial Settings: Useful in power plants, refineries, chemical processing, and other industries where accurate temperature measurement is critical.
• Field Calibration and Maintenance: Its portability makes it suitable for on-site testing of temperature sensors and control systems.
• Quality Control: Assists in verifying the accuracy of temperature measurement devices as part of quality assurance processes in manufacturing.
• Research and Laboratory Use: Provides precise simulation for testing temperature measurement equipment used in scientific research and development.

The Metravi M-01S offers a versatile and accurate solution for simulating and calibrating a wide range of thermocouples, RTDs, and mV-based devices. Its precision, ease of use, and robust design make it an essential tool for professionals who need to ensure the accuracy and reliability of temperature measurement instruments in various industrial and laboratory settings.
